AC1200 Dual Band Wireless IoT Security Hub

<

>

SH1200G-COMBO

Features
• Complies with IEEE 802.11ac/a/n/g/b standards
• 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1200Mbps simultaneously
• Provides 64/128-bit, WPA, WPA2 and WPA-Mixed security
• RTD1295 Chip, 2GB DDR4 16GB eMMC
• Playing live camera video, scheduled recording
• Send push notification to mobile phones when the device detects triggered events
• Support HDMI IN PIP Video recording and SATA Hard Disk, UHD 4K Output
• Support 4CH Camera streaming with 720P resolution at the same time on HDMI Monitor
• Optional USB BLE Gateway Communicates with BLE Sensor such as Door sensor, PIR Sensor and others

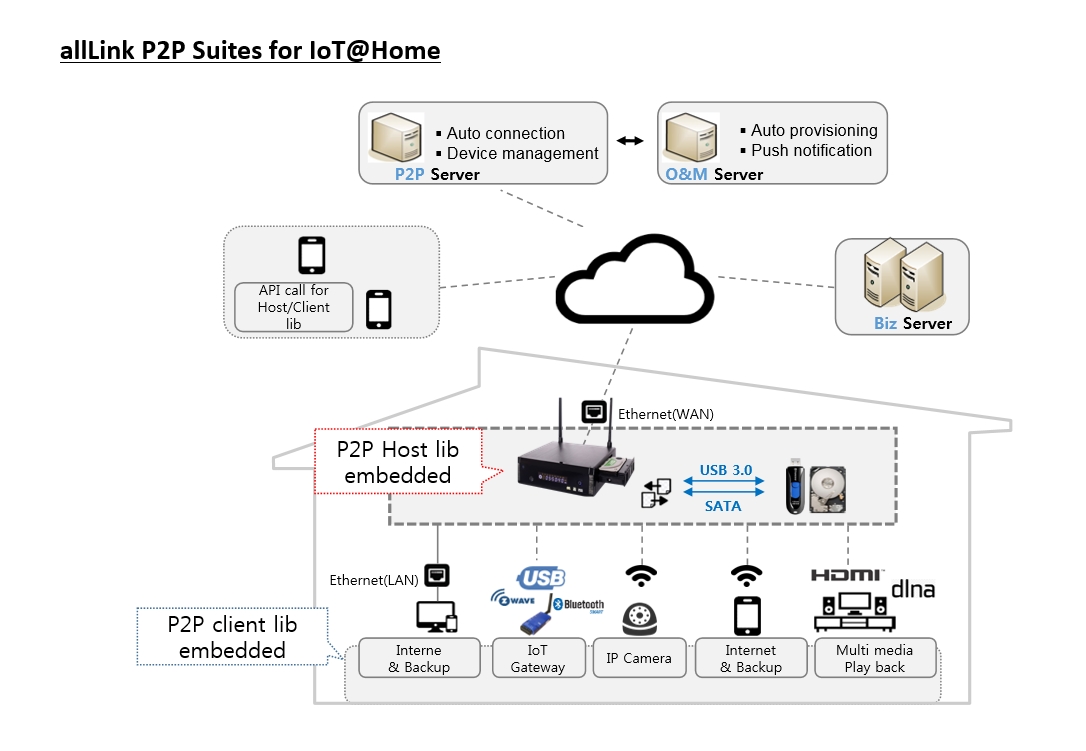

• allLink P2P Suites support Plug and Play configurations(NO DDNS, NO PC required for SW configration)
• allLink P2P Suites facilitates interactions between any smart nodes in the IOT network, controlling sensors, recording videos and others
• Super speed USB3.0 Host and High speed HDMI 2.0 for storage devices
• Support H.265/HEVC HW decoding
• Build in mobile rack for 2.5 inch SATA3.0 HDD
• Easy setup with auto-popup window simplifies the basic settings
• Free APPS(Android and Ios and PC)

Description
Specifications

Hardware

CPU	Realtek RTD1295DD ARM Cortex-A53 Quad-Core Processer
GPU	ARM T820 GPU=Mail 450 Octa-Core equivalent
Memory	2GB DDR4 up to 2400MHz
Flash	8GB/16GB/32GB eMMC (Option)
4x PoE LAN	10/100/1000M RJ45 Ethernet Ports(Auto MDI/MDIX)
1x WAN	10/100/1000M RJ45 Ethernet Port(Auto MDI/MDIX)
Wi-Fi Network	802.11 a/b/g/n/ac. 2.4G/5G Dual Channel Wi-Fi
SD Card Support	Support SD3.0, Up to 128GB
Interface	1 x WAN : 10/100/1000M RJ45 Ethernet Ports(Auto MDI/MDIX) 4 x PoE LAN : 10/100/1000M RJ45 Ethernet Ports(Auto MDI/MDIX) USB Host : 2 x USB 2.0, 1 x USB3.0 Slave, 1 x Type-C HDMI : 1x HDMI Output(3840x2160@60P 10BIT, HDMI2.0a), 1x HDMI Input(HD PVR) HDD : 1 x SATA 3.0, Up to 10TB HDD 1x Optical SPDIF 1x LCD touch panel support Device setup and indicate operational status
Antenna	2 x 2.4/5GHz 5dBi Shared Antenna
Operating temperature	0 ~ 40℃
Storage temperature	-20 ~ 70℃
Humidity	10 ~ 95% non-condensing
Dimension	188(W) x 172(H) x 60(D)mm

Software

OS	Google Android 6.0.1
File System	FAT32, NTFS
Video Formats	Supports H.265, H.264, H.263, VC-1, MPEG-1/2/4
Audio Formats	Supports MP3, FLAC, AAC, WMA, APE, AMR, MID, OGG, WAV ,Dolby TrueHD,DTS HD,and other audio formats
Picture Formats	JPG, JPEG, BMP, GIF, PNG
NAS	File Upload/Download , Auto Backup , AV Streaming
Language	English, Germany, Japanese, Korean, Russian and others
Protocol	DLNA/HLS/P2P/Onvif/RTSP
Supports Free APPS
