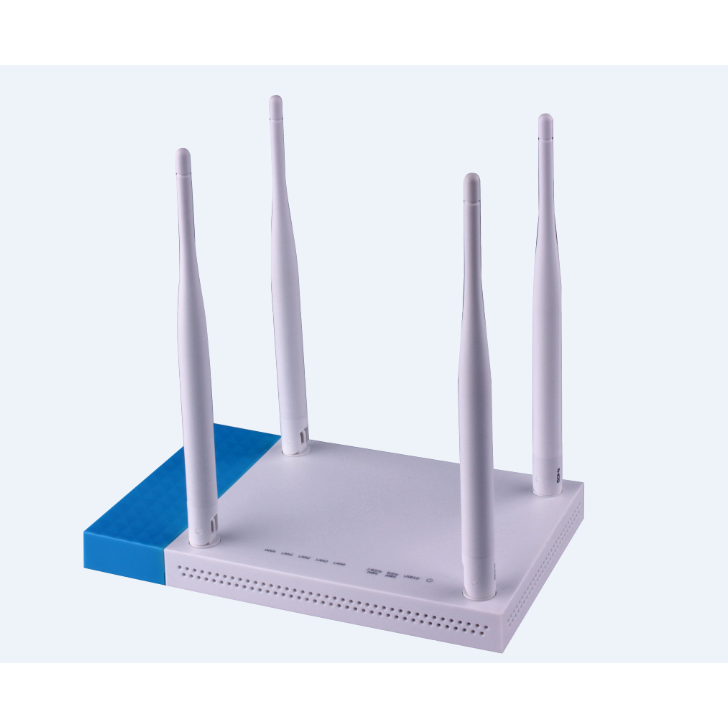

AC1200 Dual Band Wireless NVR Router

SN1200G-USB

Features
• Complies with IEEE 802.11ac/a/n/g/b standards
• 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1200Mbps simultaneously
• Supports DHCP/Static IP/PPPoE broadband functions
• Provides 64/128-bit, WPA, WPA2 and WPA-Mixed security
• Super speed USB3.0 Host for storage devices

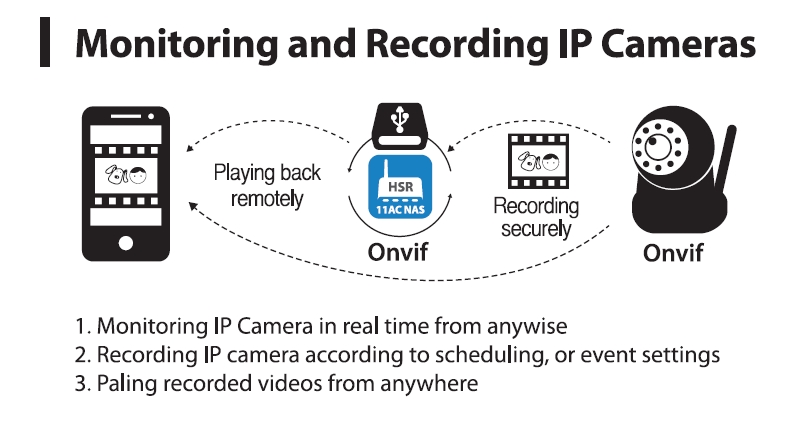

• View live video at 30 fps
• Support constant, event and scheduled recording
• Playing back recorded files remotely
• allLink P2P Suites support Plug and Play configurations(NO DDNS, NO PC required for SW configration)
• allLink P2P Suites facilitates interactions between any smart nodes in the IOT network, controlling sensors, recording videos and others
• Easy setup with auto-popup window simplifies the basic settings
• Send push notification to mobile phones when the device detects triggered events
• Supports VLAN, SNMP, SSH, IPv6, WDS, Multiple SSIDs, WPS, QoS, Wi-Fi Schedule
• Supports Free APPS(Android and Ios and PC)
  • Description
  • Specifications



Hardware


Standards

IEEE 802.11ac/n/a 5GHz, IEEE 802.11n/g/b 2.4GHz

Frequency Range

5.1 ~ 5.8GHz, 2.412 ~ 2.484GHz

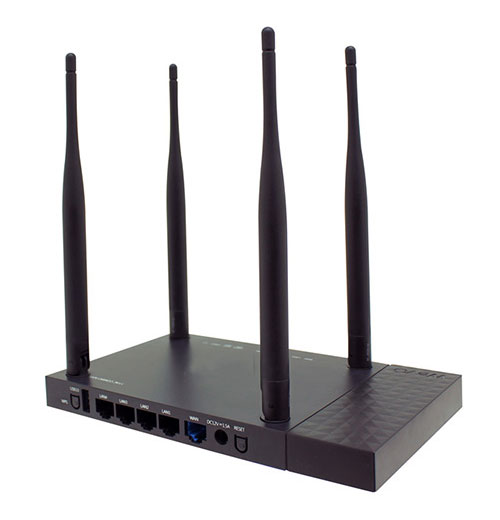

Interface

4x LAN : 10/100/1000M RJ45 Ethernet Ports(Auto MDI/MDIX)

1x WAN : 10/100/1000M RJ45 Ethernet Port(Auto MDI/MDIX)

USB Host : 1x USB3.0

Antenna2x 5GHz 5dBi External Antenna, 2x 2.4GHz 5dBi External Antenna
Button1x WPS, 1x Reset
LED1x Power, 1x 2.4G Wi-Fi, 1x 5G Wi-Fi, 1x USB3.0, 1x HDMI, 1x HDD, 1x WAN, 4x LAN
Operating temperature0 ~ 40¡æ
Storage temperature-20 ~ 70¡æ
Humidity10 ~ 95% non-condensing




Software


OSGoogle Android 6.0.1
File SystemFAT32, NTFS
Video FormatsSupports  H.265, H.264, H.263, VC-1, MPEG-1/2/4
Audio FormatsSupports MP3, FLAC, AAC, WMA, APE, AMR, MID, OGG, WAV ,Dolby TrueHD,DTS HD,and other audio formats
Picture FormatsJPG, JPEG, BMP, GIF, PNG
NASFile Upload/Download , Auto Backup , AV Streaming
LanguageEnglish, Germany, Japanese, Korean, Russian and others
ProtocolDLNA/HLS/P2P/Onvif/RTSP
Supports Free APPS
