10/100Mbps Ethernet PoE Injector

PI100F

Features
• Complies with IEEE 802.3af and IEEE 802.3at standards
• Delivers power up to 100 meters
• Auto-determine the necessary power requirements
• Install over-current protection circuit
• Plug-and-Play, no configuration required
  • Description
  • Specifications

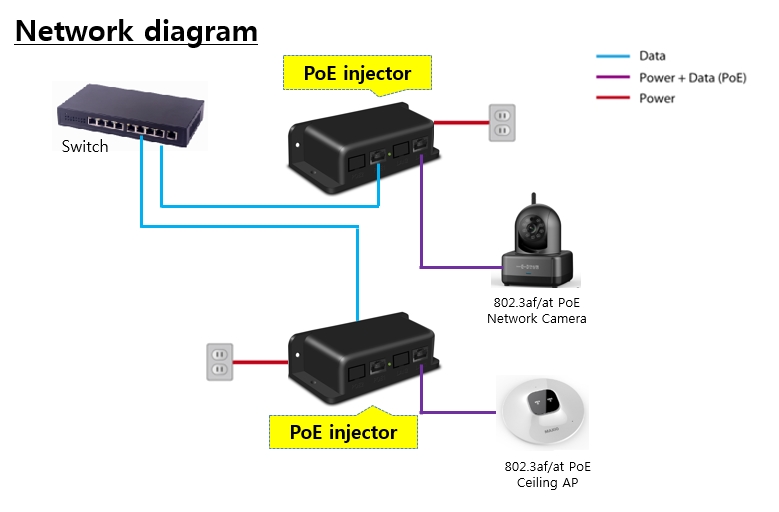

SyncNet 10/100Mbps PoE+ Injector, model PI100F, combines electrical power with a 10/100Mbps network connection to produce a 10/100Mbps PoE+ signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE and PoE+ devices. Connect the injector to a non-PoE 10/100Mbps switch and then run an Ethernet cable with data + power to network a PoE or PoE+ device up to 100 meters (328 ft.) away.






Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3af

IEEE 802.3at

Device Interface

1 x Fast Ethernet port

1 x PoE+ Fast Ethernet port

LED indicators

Wall mount

Data Transfer Rate

Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)

Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

Power

Input: 48 ¨C 56 V DC

Consumption: Max. 15/20/30 Watts

PoE

PoE budget: 30 Watts

Pin 1,2 for power- and pin 3,6 for power+ (mode A)

Operating Temperature0 - 50 ¡ãC (32 - 122 ¡ãF)
Operating HumidityMax. 90% non-condensing
Dimensions113.5(W) x 55.5(L) x 32.8(H)mm
