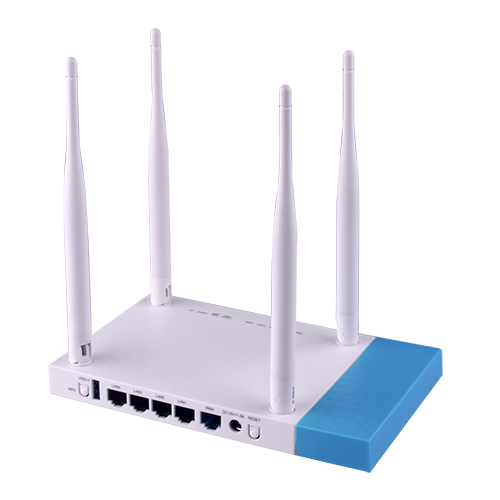

Location㏒oHome > Products > Wireless Router > 11ac Wireless Router
- Description
- Specifications
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac |
| Frequency | 5 GHz: FCC: 5.180 每 5.240 + 5.745 每 5.825; ETSI: 5.180 每 5.725 GHz 2.4 GHz: FCC: 2.412 每 2.472; ETSI: 2.412 每 2.472 GHz |
| Hardware Interface | 4 x Fast Ethernet LAN ports 1 x Gigabit WAN port 1 x USB 2.0 (Storage FTP, Samba) WPS button Reset button LED indicators |
| Encryption | Wireless encryption up to WPA2 Firewall: NAT, ALG, Port Trigger, Virtual Server, Special Applications, DMZ Host, PPTP / L2TP / IPsec VPN Passthrough Parental (Access) Controls: MAC, URL, IP Filter |
| Special Features | QoS Management IPv6 support WDS support 4 multiple SSID per band Dynamic DNS support for dyn.com and no-ip.com Samba/FTP server support Multi-Language interface: English, Chinese, Korean, Russian, others |
| Antenna Gain | 5 GHz: 5 dBi (max.) external 2.4 GHz: 5 dBi (max.) external |
| Wireless Output Power/Receiving Sensitivity | 802.11a: FCC: 22 dBm, CE: 18 dBm (Max)/-68 dBm (typical) @ 54 Mbps 802.11b: 19 dBm (Max) /-84 dBm (typical) @ 11 Mbps 802.11g: 18 dBm (Max) /-72 dBm (typical) @ 54 Mbps 802.11n: FCC: 18 dBm (Max) /-68 dBm (typical) @ 450 Mbps 2.4 GHz 802.11n: FCC: 22 dBm, CE: 18 dBm (Max)/-68 dBm (typical) @ 450 Mbps 5 GHz 802.11ac: FCC: 23 dBm, CE: 19 dBm (Max)/-55 dBm (typical) @ 1.3 Gbps |
| Power | Input: 100 每 240 V AC, 50 - 60 Hz, 0.8 A Output: 12 V DC, 1 A |
| Operating Temperature | 0 - 40∼ C (32 - 104∼ F) |
| Operating Humidity | Max. 90% non-condensing |
